Dantest Hardware Devices

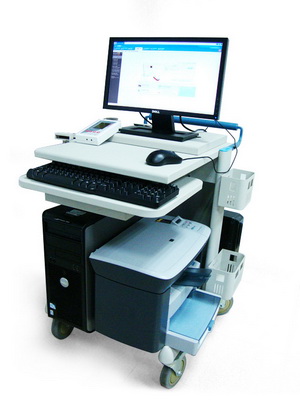

HW5 Device


The HW5 device is the top hardware product offered by QHRV. This device can communicate with any computer using USB cable, Infra Red and Bluetooth.

HW5 has two data input channels: ECG and Pulse Wave signal (Plethismogram). Both channels are 16bit with available reading frequency of 100, 250, 360, 400 and 600 Hz. The strength of the signal is automatically amplified.

HW5 can operate in two separate modes:

Real Time: While connected to a PC, patient data transfers directly and in real time to the computer for instant evaluation and analysis.

Standalone: Data from both channels is able to be stored in the hardware memory for analysis without the aid of a computer. The hardware can store measurement from more than 50 patients at any given time. All patient data can be transferred later to a PC for further analysis and reporting.

This device meets all USA and EU medical safety standards.

Features:
* USB Connection
* Bluetooth Connection
* ECG input
* Pulse Wave (Plethismogram) input
* Can collect data also stanalone without a PC (internal memory)

Compatible Analysis:
* Advance Autonomic Balance Analysis
* Pulse Wave Velocity Analysis
* Cumulative Stress Assessment
* Cardiovascular Fitness Test
* ECG Assessment
* Real Time HRV Analysis
* Neurovegetative Analysis with custom marks
* Baroreceptor Sensitivity Analysis
* Overall Health Level Assessment
* BioFeedback Stress Reliever

HW6 Device


HW6 has two data input channels: ECG and Pulse Wave signal (Plethismogram). Both channels are 16bit with available reading frequency of 100, 250, 360, 400 and 600 Hz. The strength of the signal is automatically amplified.

HW6 can operate only while connected to a PC, patient data transfers directly and in real time to the computer for instant evaluation and analysis.

This device meets all USA and EU medical safety standards.

This device is FDA 510k cleared and meets all USA and EU medical safety standards.

Features:
* USB Connection
* ECG input
* Pulse Wave (Plethismogram) input

Compatible Analysis:
* Advance Autonomic Balance Analysis
* Pulse Wave Velocity Analysis
* Cumulative Stress Assessment
* Cardiovascular Fitness Test
* ECG Assessment
* Real Time HRV Analysis
* Neurovegetative Analysis with custom marks
* Baroreceptor Sensitivity Analysis
* Overall Health Level Assessment
* BioFeedback Stress Reliever

HW6C Device


HW6C has 3 data input channels: ECG and two Pulse Wave signals (Plethismogram) with SpO2 capability. All channels are 16bit with available reading frequency of 100, 250, 360, 400 and 600 Hz. The strength of the signal is automatically amplified.

HW6C can operate only while connected to a PC, patient data transfers directly and in real time to the computer for instant evaluation and analysis.

This device meets all USA and EU medical safety standards.

This device is FDA 510k cleared and meets all USA and EU medical safety standards.

Features:
* USB or Bluetooth Connection
* ECG input
* Pulse Wave (Plethismogram) input
* Dual Plethismogram input
* SpO2

Compatible Analysis:
* Advance Autonomic Balance Analysis
* Pulse Wave Velocity Analysis
* Segmental Pulse Wave Velocity
* Coronary Artery Respiratory Response
* Baroreceptor Sensitivity Analysis
* Peripheral Arterial Tone Assessment
* Cumulative Stress Assessment
* Cardiovascular Fitness Test
* Neurovegetative Analysis with custom marks
* ECG Assessment
* Real Time HRV Analysis
* Overall Health Level Assessment
* BioFeedback Stress Reliever

HW6E Device


HW6E device is a 12 lead ECG device. All channels are 16bit with available reading frequency of 100, 250, 360, 400 and 600 Hz. The strength of the signal is automatically amplified.

HW6E can operate only while connected to a PC, patient data transfers directly and in real time to the computer for instant evaluation and analysis.

This device meets all USA and EU medical safety standards.

Features:
* USB or Bluetooth Connection
* 1,2,3 Lead ECG input
* 12 Lead ECG input

Compatible Analysis:
* Advance Autonomic Balance Analysis
* Baroreceptor Sensitivity Analysis
* Cumulative Stress Assessment
* Cardiovascular Fitness Test
* ECG Assessment
* Exercise ECG Analysis
* Multi Lead Advance ECG Analysis
* Neurovegetative Analysis with custom marks
* Real Time HRV Analysis
* Overall Health Level Assessment

MG ECG Device


Advanced wireless Bluetooth technology
Comfortable sensors weighting only 16 grams
One-button operation

Technical Data
Sampling frequency: 1000 Hz
CMRR: Typ. 104 dB
Data transfer: Bluetooth 2.0 EDR
Power: Internal Rechargeable Li-Ion battery
Weight: 16 g
Dimensions: 35 mm x 35 mm x 15 mm
Sensor type: EMG / ECG
Electrodes: Lead wires with snap connectors for disposable electrodes
D/A conversion: 16 bits
Analog output: Yes, Isolated
Power supply: 100-240 V, Medical Approved (UL60601) power supply, USB
Interfaces: Analog, Bluetooth

Features:
* Bluetooth Connection
* ECG input
* EMG input
* Movement Sensor (Accelerometer)

Compatible Analysis:
* Advance Autonomic Balance Analysis
* Baroreceptor Sensitivity Analysis
* ECG Assessment
* Exercise ECG Analysis
* Cumulative Stress Assessment
* Cardiovascular Fitness Test
* Real Time HRV Analysis
* Neurovegetative Analysis with custom marks
* Overall Health Level Assessment
* BioFeedback Stress Reliever

HW8 Device (Lite)


HW8 has one data input channels: Pulse Wave signal (Plethismogram). The channel data is 16bit with available reading frequency of 100, 250, 360, 400 and 600 Hz. The strength of the signal is automatically amplified.

HW8 can operate in two separate modes:

Real Time: While connected to a PC, patient data transfers directly and in real time to the computer for instant evaluation and analysis.

Standalone: Data from both channels is able to be stored in the hardware memory for analysis without the aid of a computer. The hardware can store measurement from more than 50 patients at any given time. All patient data can be transferred later to a PC for further analysis and reporting.

This device meets all USA and EU medical safety standards.

Features:
* USB Connection
* Pulse Wave (Plethismogram) input
* Can collect data also stanalone without a PC (internal memory)

Compatible Analysis:
* Autonomic Balance Analysis (Lite, Resting only)
* Pulse Wave Velocity Analysis (optional)
* Overall Health Level Assessment (Lite)
* Cumulative Stress Assessment
* BioFeedback Stress Reliever
